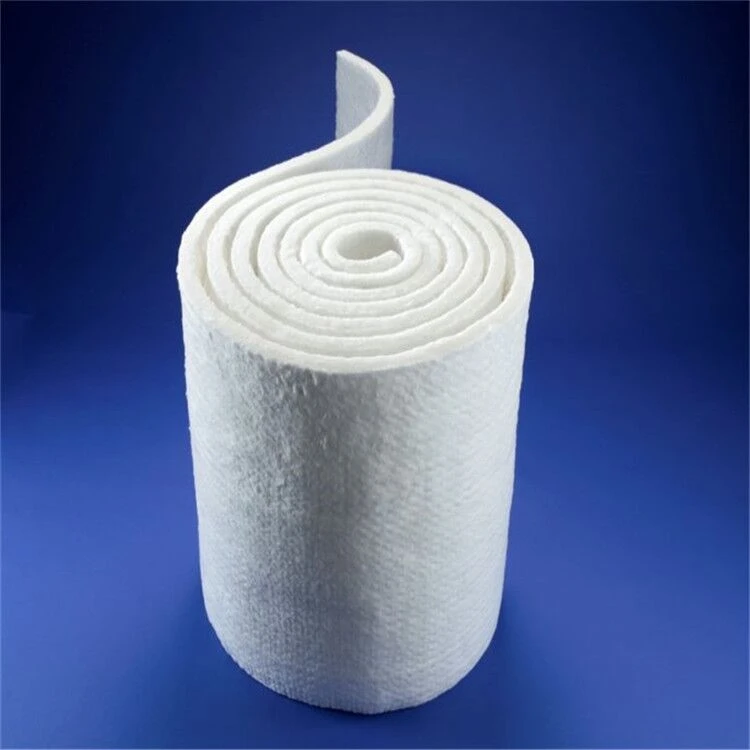

Aerogel Blanket Thermal Insulation

Comparison of aerogel blanket thermal insulation and traditional materials:

Aerogel blanket thermal insulation felt is soft, easy to cut, low density, inorganic fireproof, overall hydrophobic and green. And other characteristics, it can replace glass fiber products, asbestos insulation felt, silicate fiber products, etc. , Traditional flexible thermal insulation materials with poor thermal insulation performance.

Aerogel blanket thermal insulation is mainly used for industrial pipelines, storage tanks, industrial furnace bodies, power plants, rescue cabins, warship bulkheads, motor cars, directly buried pipelines, injection molding machines, detachable insulation sleeves, high-temperature steam pipelines for heavy oil mining, and transportation , Household appliances, steel, non-ferrous metals, glass and other fields of thermal insulation.

Physical properties:

Packaging form: roll

Thickness: 5mm, 8mm, 10mm

Width: 1500mm

Density: 180-220kg/m3

Applicable temperature: -200℃——+1000℃ (related to the model)

Hydrophobicity: Absolutely hydrophobic (below 350°C)

Thermal conductivity: 0.012-0.018w/m·k (at 25℃)

Advantage of aerogel blanket thermal insulation:

1. Excellent heat insulation effect

The thermal insulation effect of aerogel felt is 2-5 times that of traditional thermal insulation materials, and the theoretical service life determined by Arrhenius experiment is 20 years. Almost the same life span as buildings.

2. Reduce the thickness of the insulation layer

Aerogel blanket thermal insulation felt achieves the same thermal insulation effect, and its thickness is only a fraction of that of traditional materials. After heat preservation, the heat loss is small and the space utilization rate is high. And at high temperatures, the above performance advantages are more obvious.

3. Hydrophobicity and fire resistance

Aerogel felt is absolutely water-repellent, which can effectively prevent water from entering the pipeline and equipment. At the same time, it has building A1 fireproof performance, and the unique three-dimensional network structure of aerogel avoids the obvious decline of other thermal insulation materials such as sintering deformation and settlement during long-term high-temperature use.

4. Convenient construction

Aerogel felt is light in weight, easy to cut and sew to adapt to various shapes of pipes and equipment for heat preservation, and it requires less time and labor for installation.

5. Save transportation costs

Smaller package volume and lighter weight can greatly reduce the transportation cost of insulation materials.
